Uni-forms Epoxy Preforms

Sample Packs


Multi-Seals offers sample packs of Uni-forms epoxy preform configurations commonly used for sealing switches, connectors, EMI and RF filters, fiber-optics and other components. Each Uni-form epoxy preform samples pack includes four sets of configurations. Quantities vary with preform size.

There is no charge for engineering sample packs.

Samples of specific configurations for other applications are also available. Please call (860)643-7188 or email sales@multi-seals.com to discuss your application and learn how Uni-form epoxy preforms can be the no-mix, no-mess solution for your sealing or bonding requirements

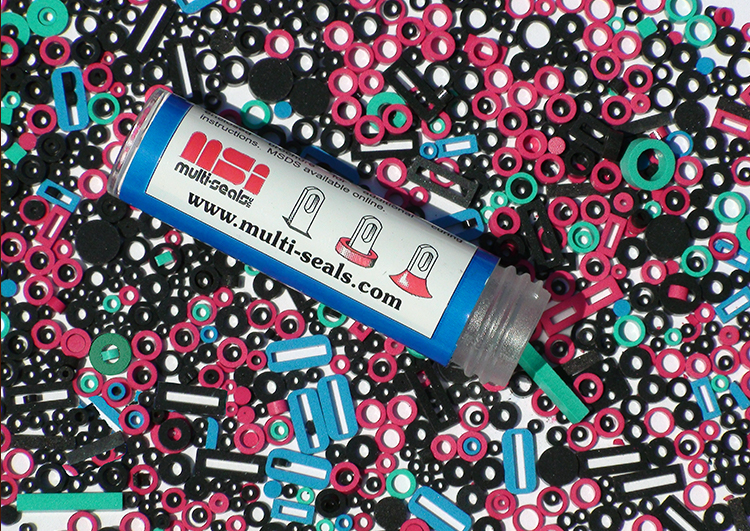

Uni-forms epoxy preforms sample vial

Please complete the fields below to receive our Uni-forms Epoxy Preform Sample Packs.

* Required










General Samples and Literature

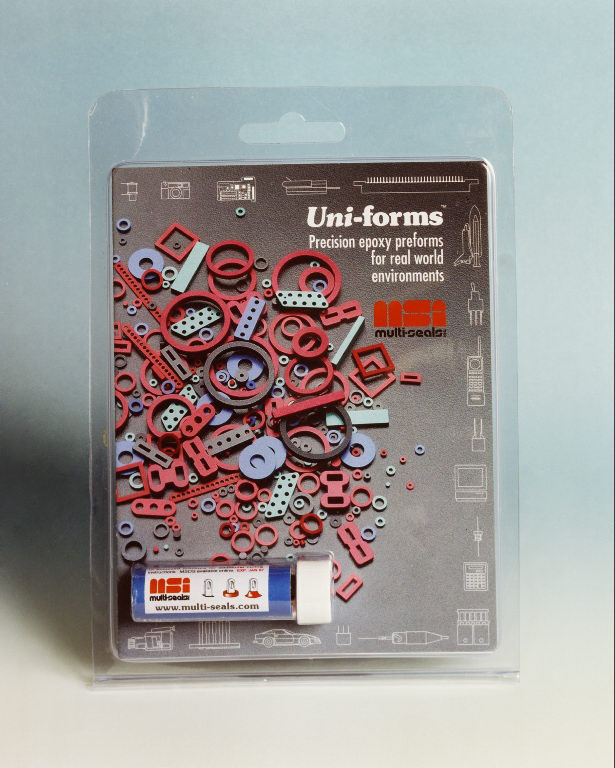

Uni-form epoxy preform general samples and literature

General Samples Pack includes general literature and a mixed variety of Uni-form epoxy preform configurations. (Also included with specialty packs.)


Switch Pack

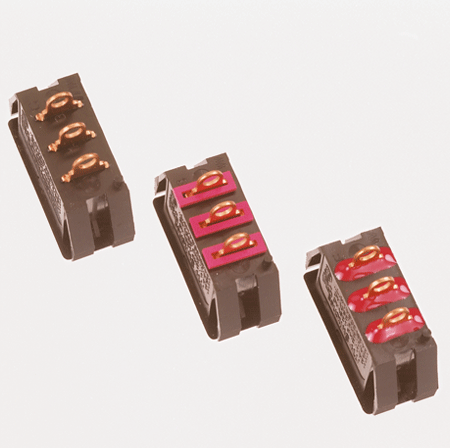

switch sealed with Uni-form epoxy preforms

Switch Pack includes the following Uni-forms to seal a variety of terminal styles on common switch designs:

PART # OD ID TK EPOXY COLOR SHAPE QTY
5375-00 .097 .056 .030 DC-202 Black black ring 750
5376-00 .145 .093 .035 DC-203 Blue blue ring 250
5377-00 .185 .110 .039 DC-203 Green green ring 150
5378-00 L.200
W.090		 L.135
W.030		 .045 DC-202LT Red red rectangle 150

Connector Pack

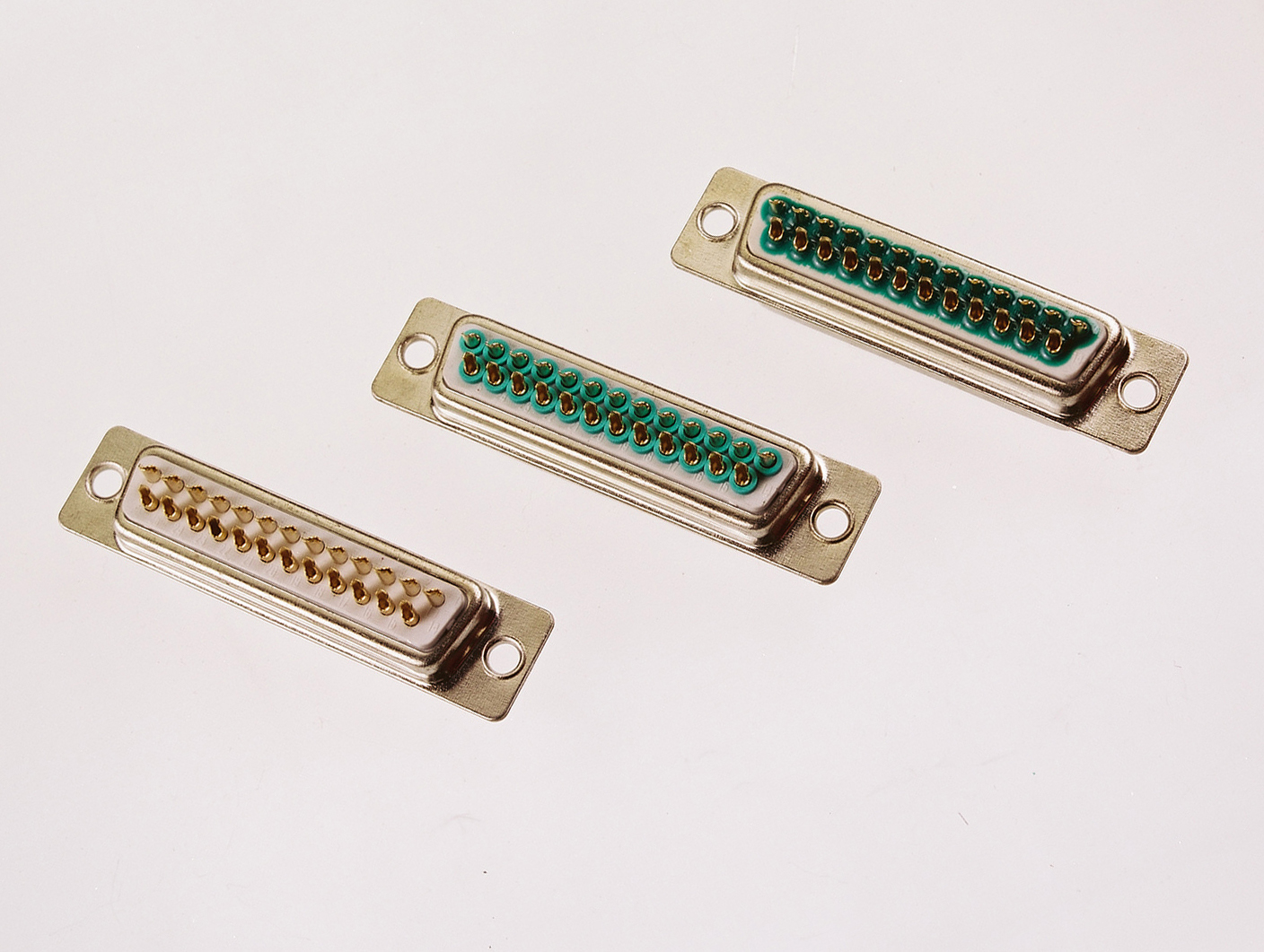

connectors sealed with Uni-form epoxy preforms

Connector Pack includes the following Uni-forms to seal a variety of terminal styles on common connector designs:

PART # OD ID TK EPOXY COLOR SHAPE QTY
5379-00 .070 .030 .030 DC-203 Red red ring 1,400
5380-00 .074 .034 .030 DC-204 Black black ring 1,250
5381-00 .080 .040 .025 DC-202 Black black ring 1,250
5382-00 .097 .050 .030 DC-203 Green 700

Fiber Optic Pack

fiber optic assembly sealed with Uni-form epoxy preform

Fiber Optic Pack includes the following Uni-forms to seal fiber to ferrule and ferrule to backbone. Includes high glass-transition temperature system designed to withstand over-molding:

PART # OD ID TK EPOXY COLOR SHAPE QTY
5383-00 .045 .017 .030 DC-202 Black black ring 3,500
5384-00 .048 .016 .050 DC-202 Black black ring 2,000
5385-00 .097 .016 .090 DC-202 Black black ring 225
5386-00 .155 .110 .035 M5-92 Red red ring 225

Filter Pack

EMI filters sealed with Uni-form epoxy preforms

Filter Pack includes the following Uni-forms to pot RF, EMI, and GMI filters:

PART # OD ID TK EPOXY COLOR SHAPE QTY
5387-00 .070 .030 .020 DC-204 Black black ring 2,000
5388-00 .090 .040 .030 DC-204 Black black ring 800
5389-00 .097 .050 .040 DC-204 Black black ring 550
5390-00 .145 .093 .055 DC-203 Green red ring 225

Pellet Pack

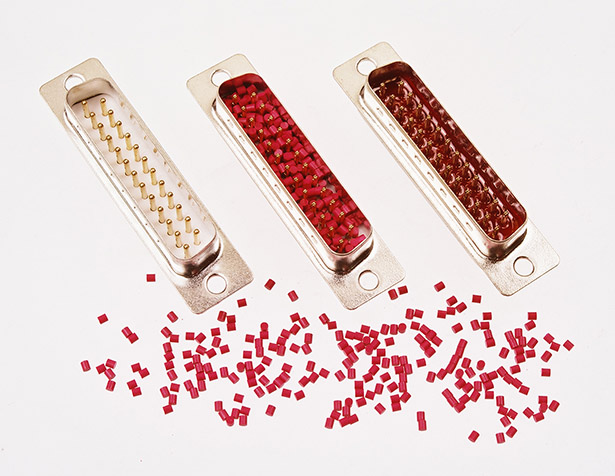

Uni-form pellets potting d-sub connectors

Pellet Pack includes the following Uni-forms for potting applications:

PART # OD ID TK EPOXY COLOR SHAPE QTY
5391-00 .055 Plug .050 DC-204 Black black plug 1,400
5392-00 .070 Plug .070 DC-204 Black black plug 600
5393-00 .097 Plug .040 DC-203 Red red plug 500
5394-00 .125 Plug .030 DC-203 Blue blue plug 425
