Typical Poly-forms Configurations

Multi-Seals’ Poly-forms flexible adhesive films can be pre-formed in nearly unlimited shapes to accommodate diverse industrial sealing and bonding applications. Typical configurations fall within the following guidelines:

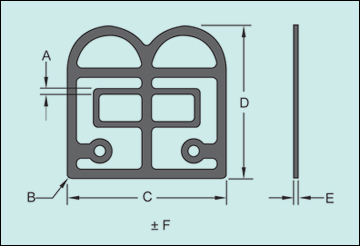

Guidelines for typical Poly-forms configurations

A.  Minimum recommended wall: .040″ (1mm)

B.  Minimum recommended radius: 1/32 (.031″, .79mm)

C.  Maximum recommended width: 5″ (127mm)

D.  Maximum recommended length: undetermined

E.  Thickness Range: .015″ – .040″ (.38mm – 1mm)

F.  Standard tolerances: ± .015″ (.38mm) or ± .005″ (.13mm) based on production method

Let us help find the best Poly-form configuration for your component.

Call (860)643-7188 or email sales@multi-seals.com to discuss potential configurations in greater detail. Engineering samples, prototypes of custom configurations, and free sealing evaluations of your component are available.
